Model : Gearless P.M.S.M Elevator Traction Machine | BB2
ประเภทสินค้า:

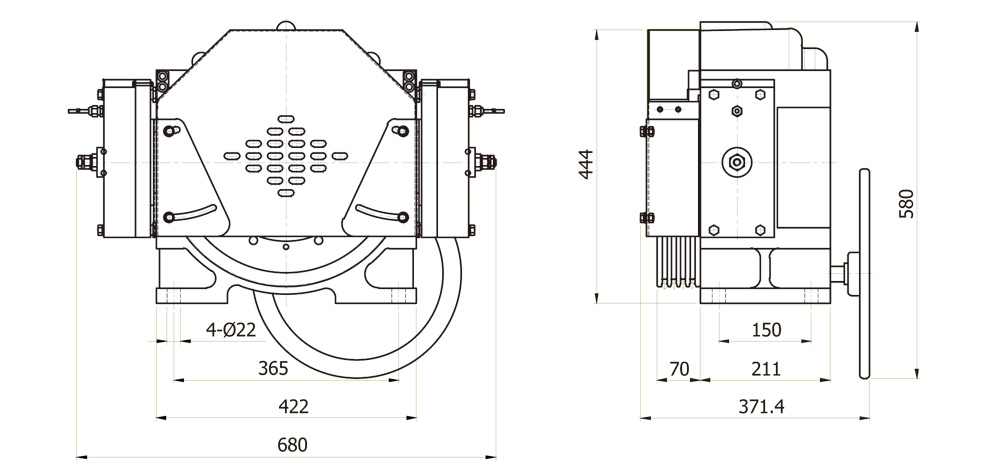

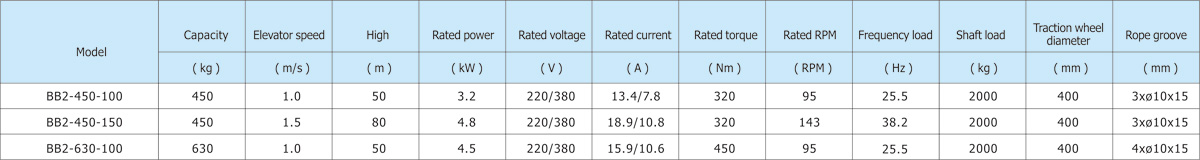

360 Series
- Structure : Internal Rotation
- Suspension : 2:1
- Brake voltage : DC110V
- Operation ED : 60% ED
- Insulation class : F class
- Weight : 240 kg

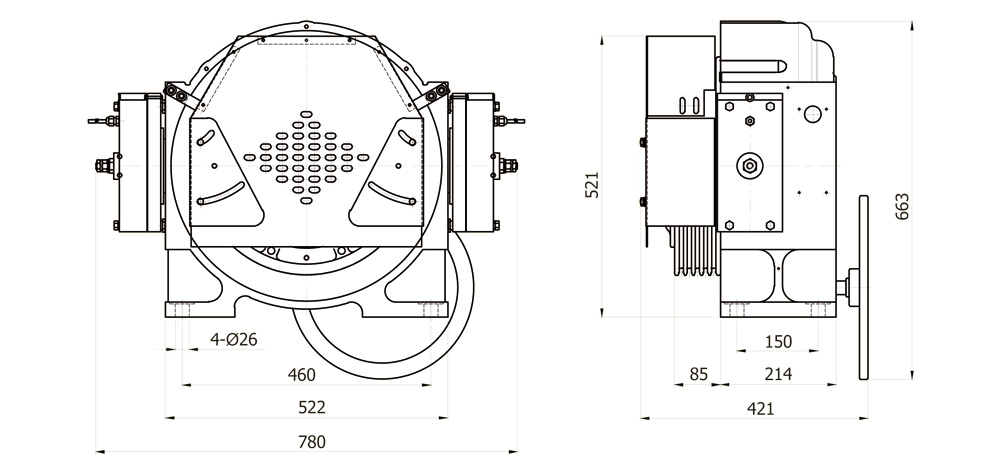

460 Series
- Structure : Internal Rotation
- Suspension : 2:1
- Brake voltage : DC110V
- Operation ED : 60% ED
- Insulation class : F class
- Weight : 320 kg

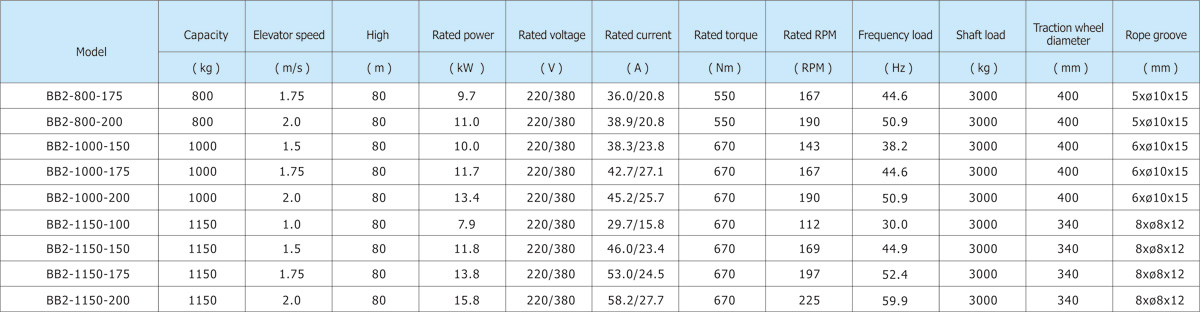

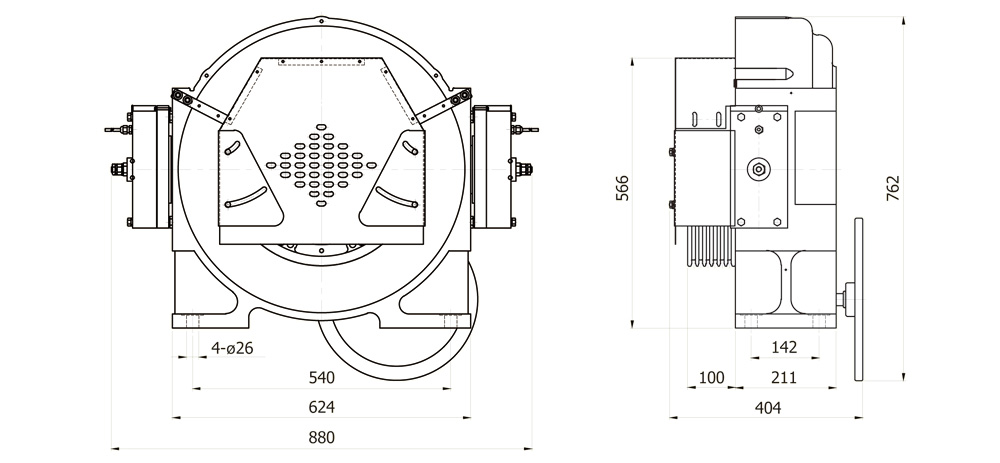

560 Series
- Structure : Internal Rotation
- Suspension : 2:1
- Brake voltage : DC110V
- Operation ED : 60% ED
- Insulation class : F class
- Weight : 410 kg
- Data are subject to change without prior notice.

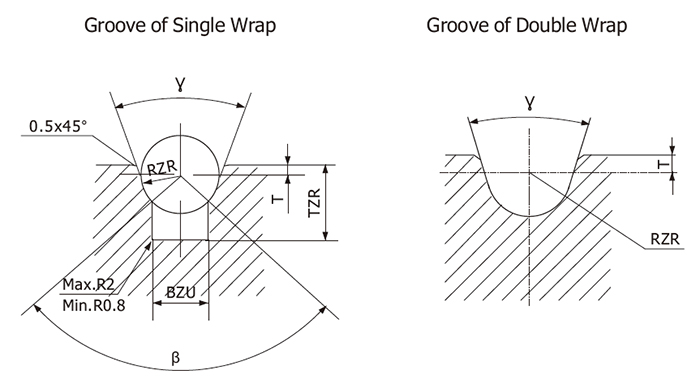

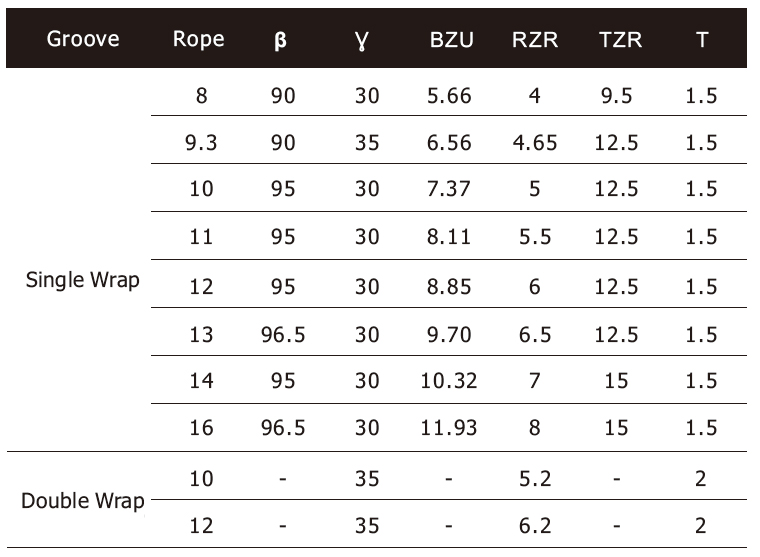

- This is our factory standard configuration groove.
- The user should calculate the elevator traction capability and the safety factory of rope according to the actual parameter.

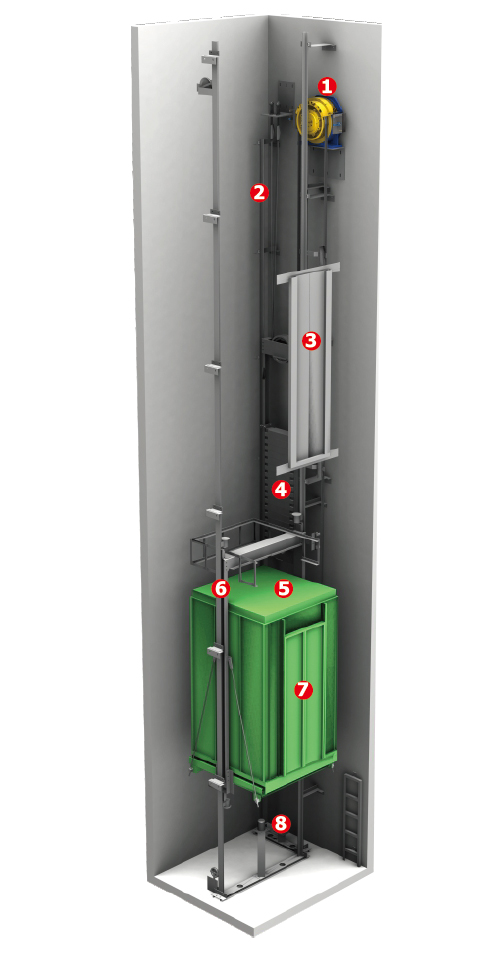

1. Traction Machine
2. Counterweight Rail Guide
3. Service Door (outside)
4. Counterweight
5. Car Cage
6. Car Rail Guide
7. Car Door (inside)
8. Buffer
Traction Machine
- Installation : Foot Mount Installation
- Power Supply : Input with inverter
- Maximum rated torque : 200%
- Operation ED : 60% ED
- Nsulation Class : F Class
- Location : Indoor
- Temperature : -10 ~ +40°C
- Humidity : 90% RH (no frost) and below.
- Height : No less than 1000m and below
- Encoder : 2048/8192 P/R (optional)
- Brake : Dual Electromagnetic Brake
- Suspension : 2 : 1
